How to Create an OKX API Key for Spot, Perpetuals and Demo Trading

The safest way to create an OKX API key

An API key should have one owner, one purpose and the smallest useful permission set. A portfolio dashboard normally needs Read only. A trading bot needs Read and Trade, but it does not automatically need Withdraw. A separate key makes it possible to revoke one integration without breaking every other application.

Use case	Read	Trade	Withdraw	Recommended boundary
Portfolio or tax export	Yes	No	No	Read-only key; no order capability
Alerts and monitoring	Yes	No	No	Read-only key; IP allowlist if hosted
Trading bot	Yes	Only when required	No	Separate key, fixed IP, order limits in the app
Withdrawal automation	Yes	As required	Only after a security review	Isolate from ordinary trading and apply independent controls

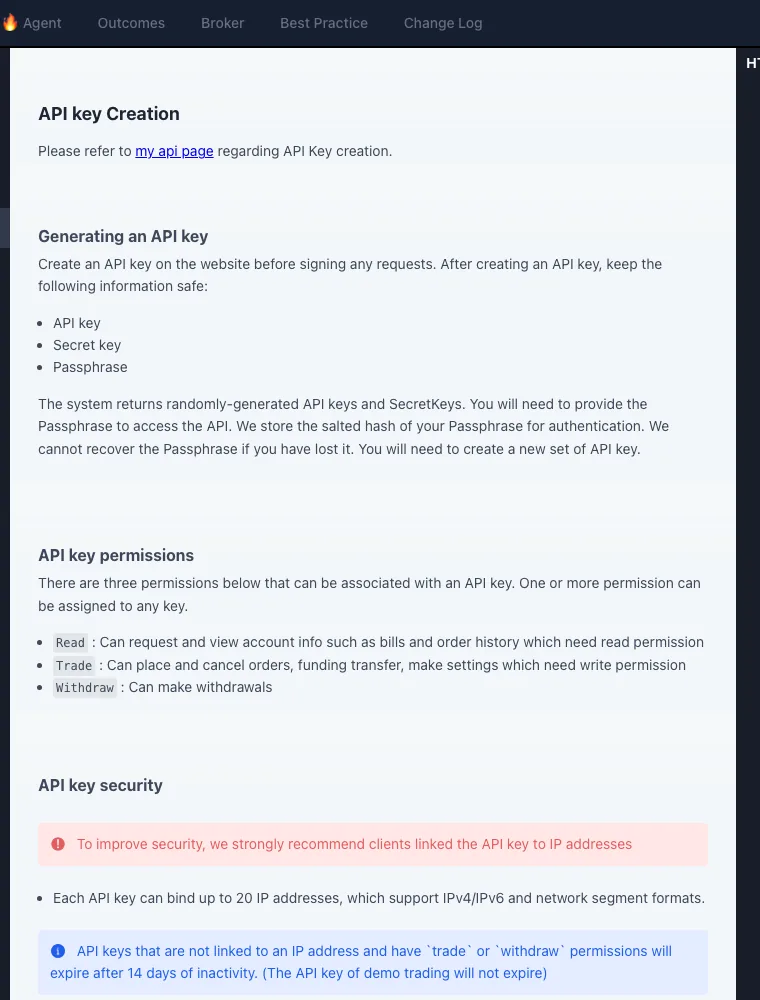

Three quantitative rules that affect production

Rule	Official value	Operational consequence
Permission classes	3	Read, Trade and Withdraw can be reviewed separately; a bot does not require all three
IP addresses per key	Up to 20	Multiple egress points are possible, but only actual production IPs should be listed
Non-IP key inactivity expiry	14 days	Trade/Withdraw keys without an IP binding can expire after inactivity and need monitoring or rotation

These values turn “secure the key” into testable controls: permissions can be enumerated, egress addresses documented and key expiry monitored.

Configuration examples for real integrations

Integration	Data or action	Permission	Additional boundary
Portfolio or tax dashboard	Balances, fills and bills	Read	Server-side secret; scheduled retrieval
Price and risk alerts	Public market data plus account positions	Read	Use unauthenticated public endpoints wherever possible
Execution bot	Account queries, orders and cancellations	Read + Trade	Fixed IP, symbol allowlist, order/day limits and an emergency key-revoke path

Withdraw is not a normal trading-bot requirement. If automated withdrawals are truly necessary, isolate them into a separate service, key, approval flow and limit.

How do I create an OKX API key for perpetual contracts?

Create an Exchange API key in the trading account, enable Read and then Trade, and keep Withdraw off. Confirm the account mode supports derivatives before sending orders. A USDT-margined perpetual uses an instrument such as BTC-USDT-SWAP; spot uses BTC-USDT. The private order endpoint is the same POST /api/v5/trade/order, but the instrument, trade mode, position settings and margin requirements differ.

Can spot and perpetuals use the same OKX API key?

Yes, a live Exchange API key can authenticate both spot and perpetual requests when it has Trade permission and the account is configured for those products. It is still safer to create separate keys when different applications own the spot and derivatives strategies: separate credentials make revocation, IP allowlisting and log review narrower. Demo and live credentials should never be shared.

Is Trade permission enough, or does a bot need Withdraw?

For account reads, order placement and cancellation, use Read + Trade. Withdraw is not required for a normal spot or perpetual execution bot. Enabling it increases the consequence of a credential leak without improving order execution. If withdrawals must be automated, move that function to a separate service, separate key and separate approval path.

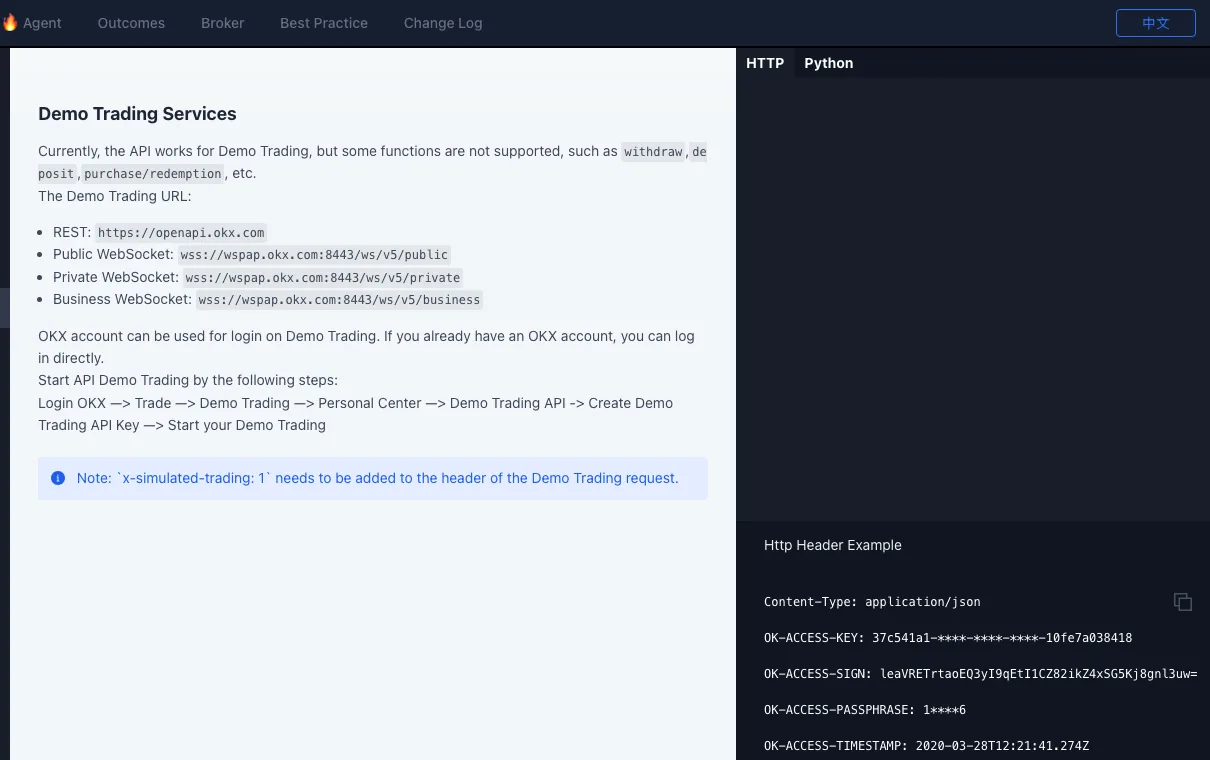

How do I create an OKX demo trading API key?

Open Trade → Demo Trading → Personal Center → Demo Trading API, then create a dedicated demo key. Demo REST requests use the documented API host and must include x-simulated-trading: 1. OKX states that demo keys do not expire under the 14-day inactivity rule. A successful demo order validates request construction, but not live balances, production IPs or real-money risk controls.

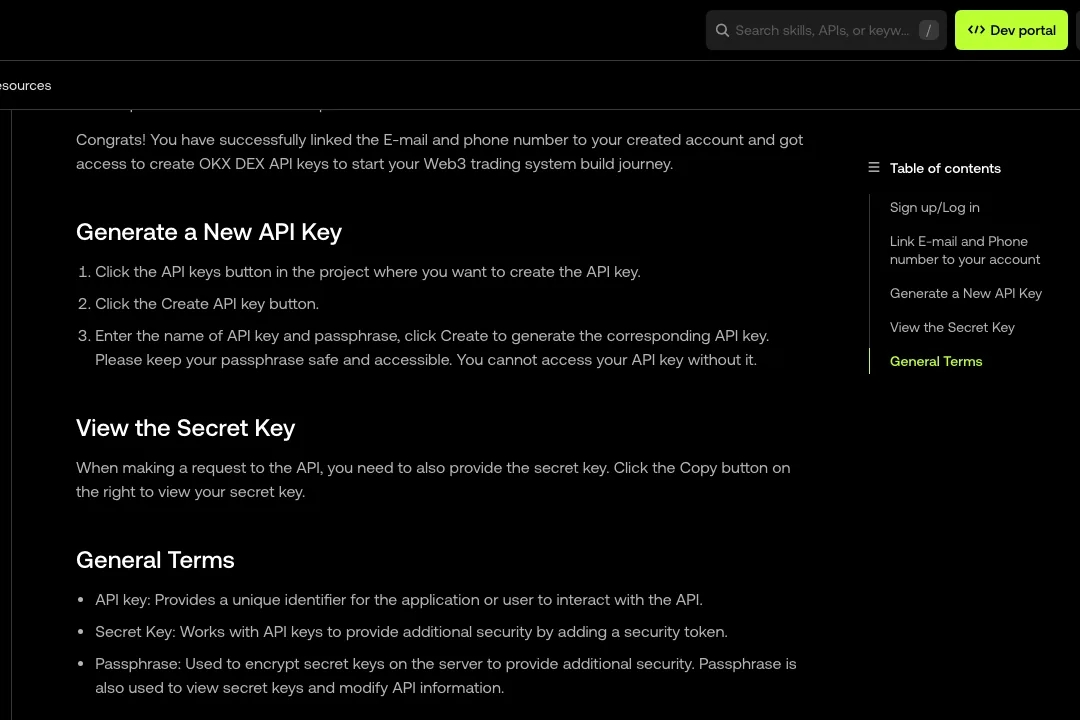

What is the difference between OKX Exchange API and DEX or Onchain API?

API family	Credential location	Main purpose	Typical asset control
Exchange V5 API	OKX trading account API settings	Centralized spot, perpetuals, balances and orders	Assets held in the exchange account
DEX / Onchain API	Project in the OKX developer portal	Onchain quotes, routing and transaction construction	User wallet signs or sends onchain transactions

The two products use similar authentication concepts but not the same project or API key. A DEX key does not grant centralized Exchange order permission, and an Exchange key is not the credential for the Onchain developer project.

Minimal OKX perpetual API request in demo mode

This example uses OKX’s documented Python SDK pattern and explicitly selects demo mode. Replace the placeholders with a demo key, confirm the demo account mode, and change price or size only inside the simulated environment.

import okx.Trade as Trade

api = Trade.TradeAPI(
    "YOUR_DEMO_API_KEY",
    "YOUR_DEMO_SECRET_KEY",
    "YOUR_DEMO_PASSPHRASE",
    False,
    "1",  # 1 = demo trading; 0 would be live
)

result = api.place_order(
    instId="BTC-USDT-SWAP",
    tdMode="isolated",
    side="buy",
    ordType="limit",
    px="10000",
    sz="1",
)
print(result)

The SDK’s demo flag adds the simulated-trading behavior. A raw REST client must sign the request and add x-simulated-trading: 1 itself. Never paste a real Secret or Passphrase into browser JavaScript, chat or source control.

Step-by-step setup

1. Write down the task first. State which application will use the key and whether it reads data or sends orders.
2. Open OKX through the OKX registration page, then navigate to API settings inside the authenticated account. Create a key for this application rather than recycling an old credential. The referral offer provides 20% off trading fees.
3. Select the minimum permission. Begin with Read; add Trade only after testing.
4. Store all credential parts immediately. Put the API key, secret and passphrase in a secret manager or encrypted environment configuration. Do not paste them into chat, source code, screenshots or analytics logs.
5. Bind the key to a stable outbound IP when possible. Confirm the IP seen by OKX is the one used by the production server.
6. Test one private read request. Verify authentication, time synchronization and account scope before enabling order methods.
7. Create separate demo credentials. Do not use a successful demo request as proof that live credentials or live risk controls are correct.

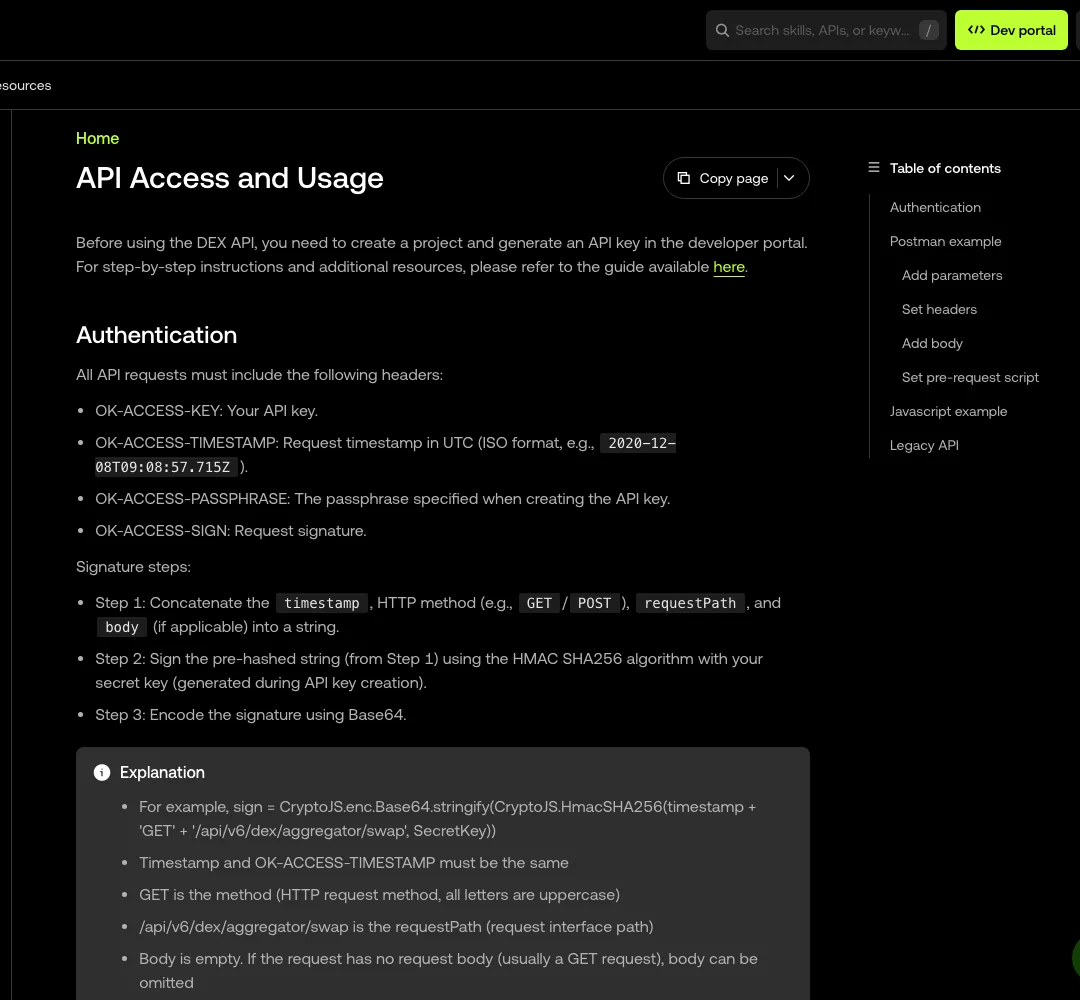

How OKX REST signatures work

The official authentication guide describes a pre-hash string assembled from the request timestamp, uppercase HTTP method, request path and request body. That string is signed with the API secret using HMAC SHA-256 and Base64 encoded. Private REST requests also send the API key, signature, timestamp and passphrase in the documented headers.

prehash = timestamp + METHOD + requestPath + body
signature = Base64(HMAC_SHA256(secret, prehash))

The request path must include its query string, and the body used for signing must match the body actually sent. Keep system time synchronized and never log the secret or raw credentials while debugging.

Common authentication failures

Symptom	Check first	Safe diagnostic
Invalid signature	Method, path, body and Base64 encoding	Log the pre-hash string with secrets redacted
Timestamp expired	Server clock and timestamp format	Compare the server clock with UTC
Invalid passphrase	The passphrase saved when the key was created	Recreate the key if the value cannot be recovered safely
Permission denied	Read, Trade or Withdraw scope	Call a read endpoint first; do not broaden permissions blindly
IP restriction	Actual outbound IP of the running server	Inspect egress from the production environment, not a laptop
Demo request fails	Demo key and demo request requirements	Recheck the official demo-trading section

Pre-production security checklist

• one key per integration and environment;
• no API secrets committed to Git or bundled into browser JavaScript;
• Withdraw disabled for ordinary dashboards and trading bots;
• stable-IP allowlist where operationally possible;
• logs redact the API key, secret, passphrase and signature;
• a documented revoke-and-rotate procedure;
• order-size, symbol and loss controls enforced by the application; and
• a small live test only after demo and read-only checks pass.

When authentication is working, use the OKX fee calculator with the actual rate shown in your account rather than assuming one public headline rate applies to every user.
